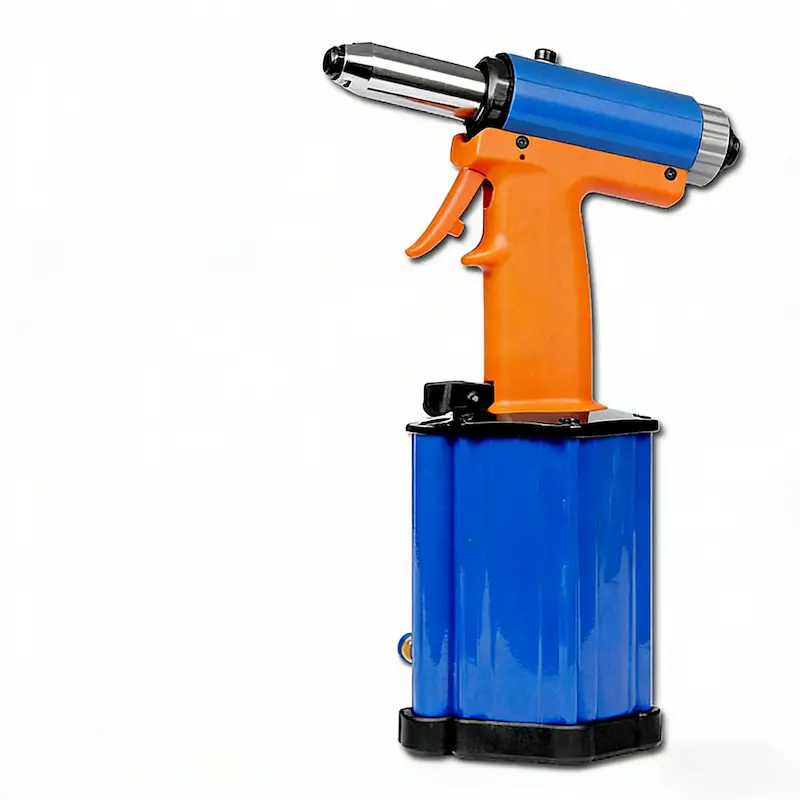

Huien HE Series Pneumatic Rivet Guns | Industrial Blind Rivet Tools for Versatile Applications
Huien HE Series Pneumatic Riveting Tools
Advantages
- Powerful Traction Force: Engineered with high pulling force (up to 8812 lbf/3997 kgf) for secure rivet setting across material thicknesses.
- Lightweight & Ergonomic: Tool weights optimized for operator comfort during extended use, reducing fatigue.
- Versatile Rivet Capacity: Multiple models support a wide range of rivet diameters (from 2.4mm to 6.4mm) for flexible application.
- Durable Construction: Industrial-grade design ensures long-lasting performance in demanding workshop and production environments.
- Enhanced Efficiency: Suction-type models (HE-500EX, HE-800EX, HE-560Z) offer faster rivet handling for improved workflow.
Description
The Huien HE Series represents a comprehensive lineup of professional-grade pneumatic riveting tools designed for reliability and efficiency. These rivet guns are built to handle blind rivet installation across various materials, from sheet metal to industrial assemblies. The series includes both standard and suction-type models, with traction power ranging from 2000 lbf to over 8800 lbf to suit different application demands. Engineered for durability and operator comfort, Huien HE tools provide consistent performance for maintenance, manufacturing, and construction applications.
Specifications
Technical Specifications for Huien HE Series Pneumatic Riveting Tools
| Model | Stroke | Traction Power | Weight | Rivet Capacity | Notes |
|---|---|---|---|---|---|
| HE-500E | 18 mm | 2338 lbf (1060 kgf) | 1.3 kg | 3.2 / 4.0 / 4.8 mm | — |
| HE-500EX | 18 mm | 2338 lbf (1060 kgf) | 1.3 kg | 3.2 / 4.0 / 4.8 mm | Suction Type |
| HE-500A1 | 16 mm | 2304 lbf (1045 kgf) | 1.3 kg | 2.4 / 3.2 / 4.0 / 4.8 mm | — |
| HE-560Z | 17 mm | 2000 lbf (907 kgf) | 1.62 kg | Not Specified | Suction Type |
| HE-800E | 20 mm | 3871 lbf (1755 kgf) | 1.7 kg | 4.8 / 6.0 / 6.4 mm | — |
| HE-800EX | 20 mm | 3871 lbf (1755 kgf) | 1.7 kg | 4.8 / 6.0 / 6.4 mm | Suction Type |
| HE-800A1 | 18 mm | 3849 lbf (1746 kgf) | 1.75 kg | 4.8 / 6.0 / 6.4 mm | — |
| HE-820GH | 17 mm | 8812 lbf (3997 kgf) | 2.9 kg | 5.0 / 6.4 mm | — |
Applications
Huien pneumatic rivet guns are essential tools for industries requiring secure, vibration-resistant fastening. They are ideal for assembling metal frameworks, installing HVAC systems, manufacturing transportation equipment, and general fabrication where access is limited to one side of the workpiece
- Sheet Metal Fabrication and Ductwork Assembly
- HVAC System Installation and Maintenance
- Automotive, Bus, and Rail Car Body Assembly
- Electrical Enclosure and Panel Manufacturing
- General Industrial Maintenance and Repair Operations
- Construction of Metal Structures and Shipping Containers
FAQ
Suction-type models (marked EX or Z) automatically retrieve a rivet from a loose feed system, speeding up repetitive tasks, while standard models require manual loading of each rivet.
Match the tool’s specified “Rivet Capacity” to your rivet’s diameter. For example, HE-800 series models handle larger rivets (4.8-6.4mm) than the HE-500 series (2.4-4.8mm).
This indicates the maximum pulling force the tool can apply to set the rivet. Higher traction power is needed for larger-diameter or harder rivets and thicker material stacks.
Yes, especially the suction-type models (like HE-500EX/800EX) which are designed for faster cycle times in repetitive assembly tasks.
Regular maintenance includes daily air filter draining, periodic lubrication (if not oil-free), and inspection of jaws and wear parts according to the operating manual.
Yes, most models are designed to accommodate a specified range of rivet diameters. You may need to change the nosepiece or jaws when switching between different rivet sizes within that range.
