Huien Industrial Pneumatic Tapping Machine | High-Speed Reverse Tapping Tool for M12 Threading Operations

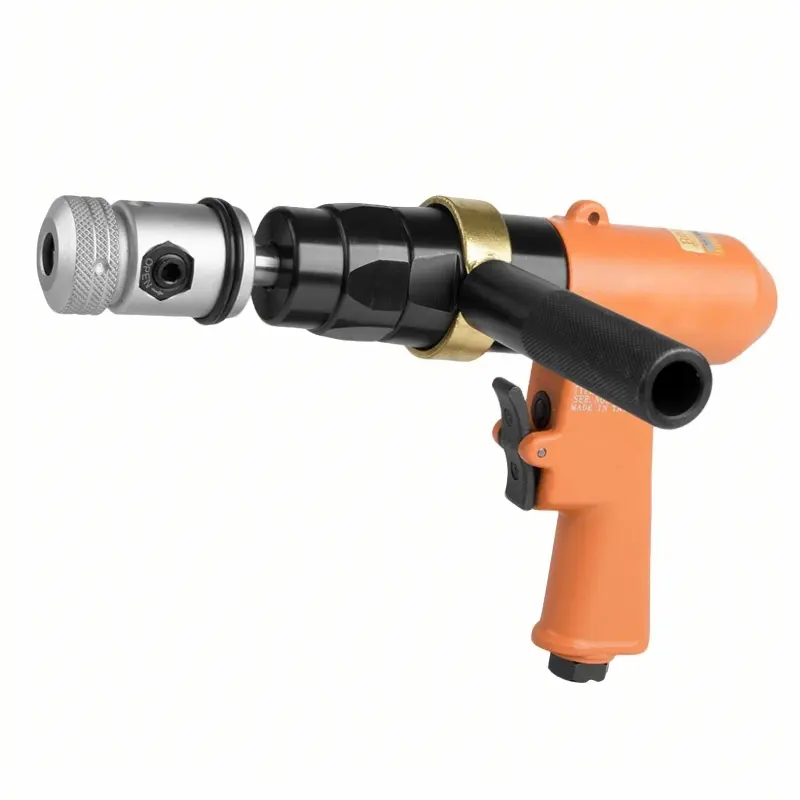

Huien Industrial Pneumatic Tapping Machine
Advantages
- High-Precision Machining: Ensures superior concentricity and operational stability for accurate threading.
- Heat-Treated Components: Specialized treatment of parts enhances durability for high-volume production lines.
- Lightweight & High Torque: Reduces operator fatigue while delivering powerful torque for improved efficiency.
- Quick Forward/Reverse Switch: Enables single-handed operation, significantly boosting productivity.
- Safety-Focused Design: Pneumatic power eliminates electrical hazards, meeting industrial safety requirements.
- Torque-Sensitive Collet: Protects taps from breakage by automatically disengaging at preset torque.
Description
The Huien Industrial Pneumatic Tapping Machine is engineered for high-efficiency handheld tapping and thread cleaning operations. With a maximum capacity of M12, a no-load speed of 150 rpm, and a rapid forward/reverse switch, it ensures precise and fast threading in various materials. Its lightweight design, combined with high torque output and ergonomic handling, minimizes operator fatigue, while the pneumatic motor provides a safe, reliable power source ideal for industrial environments. Perfect for use in automotive, aerospace, electronics, and general manufacturing.
Specifications
Technical Specifications for Huien Industrial Pneumatic Tapping Machine
| Model | Tapping Capacity | Free Speed (rpm) | Length (mm) | Weight (kg) | Notes / Other Models in Series |
|---|---|---|---|---|---|
| HE-6003 | 1-3 mm (General) | 1000 | 280 | 0.74 | Push-to-start function. |
| HE-6010 | Al: 3-10 mm, Fe: 3-6 mm | 2500 | 225 | 1.36 | - |
| HE-6012 | Al: 6-12 mm, Fe: 6-8 mm | 150 | 245 | 1.77 | - |
| HE-8Q | 2-8 mm | 1200 | 193 | 1.63 | — |
| HE-13QZ | 2-13 mm | 400 | 235 | 1.61 | Supplied **without** tap. Must be purchased separately as needed. |
| HE-13QZH | 2-13 mm | 400 | 235 | 1.61 | Supplied **without** collet and tap. Must be purchased separately as needed. |
Applications
The Huien pneumatic tapping machine is designed for efficient, precise tapping and thread cleaning across diverse industrial sectors. Its versatility and safety features make it ideal for high-volume production lines and maintenance tasks where reliability and operator comfort are critical.
- Automotive parts and engine component tapping
- Aerospace structural and engine assembly threading
- Shipbuilding and rail vehicle manufacturing
- Electronics and appliance chassis threading
- Mold and die manufacturing for thread creation
- General industrial maintenance and repair operations
FAQ
This machine is designed for tapping operations up to M12 thread size.
It allows operators to quickly switch between tapping and reversing motions with one hand, reducing cycle time and effort.
Pneumatic power eliminates risks of electric shock, sparks, or overheating, making it safer for use in flammable or hazardous environments.
Yes, it is suitable for both tapping new threads and cleaning or re-tapping existing threads.
It is designed to tap a wide range of materials, including steel, aluminum, alloys, and plastics commonly used in industrial manufacturing.
The collet automatically disengages or slips when excessive torque is detected, preventing tap breakage and reducing tooling costs.
